Konnecta Fleckz Self-Locking Fitness Tiles (6 colours)

Konnecta Fleckz Self-Locking Fitness Tiles (6 colours)

Regular price
Price: £56.60
Regular price
List Price:
Sale price
Price: £56.60
Color
Size

Allow around 7% extra for cuts and offcuts — round your floor area up before entering it.

Free Samples Available Free, including postage
Free UK Delivery Over £500 Delivery calculated at checkout under £500
14-Day Returns Full refund, original condition
Speak to an Expert 0333 880 7174
View Cart

Not sure which colour? Request a free sample

200 in stock

Description

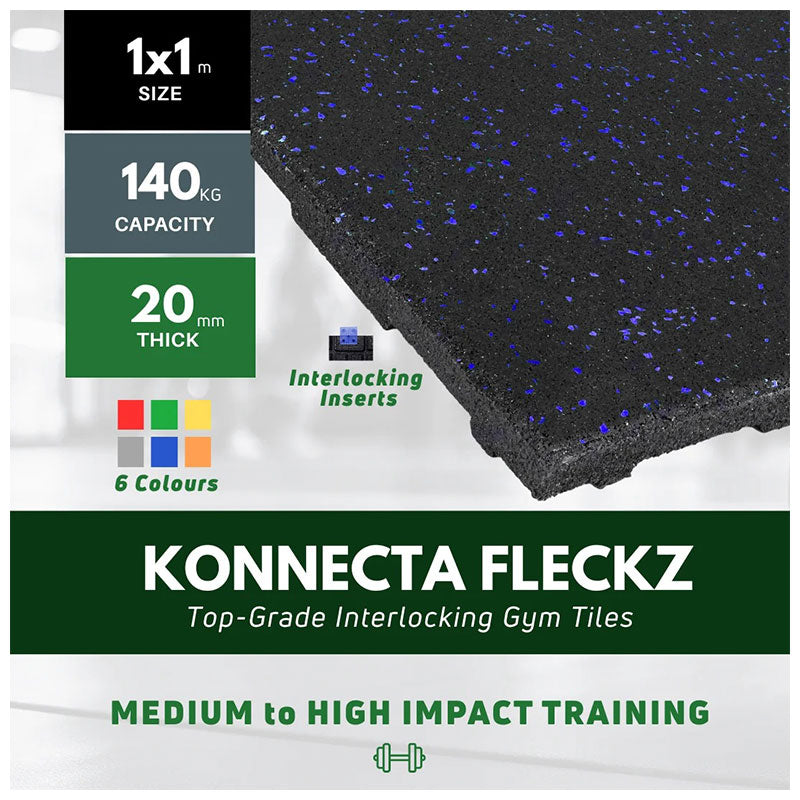

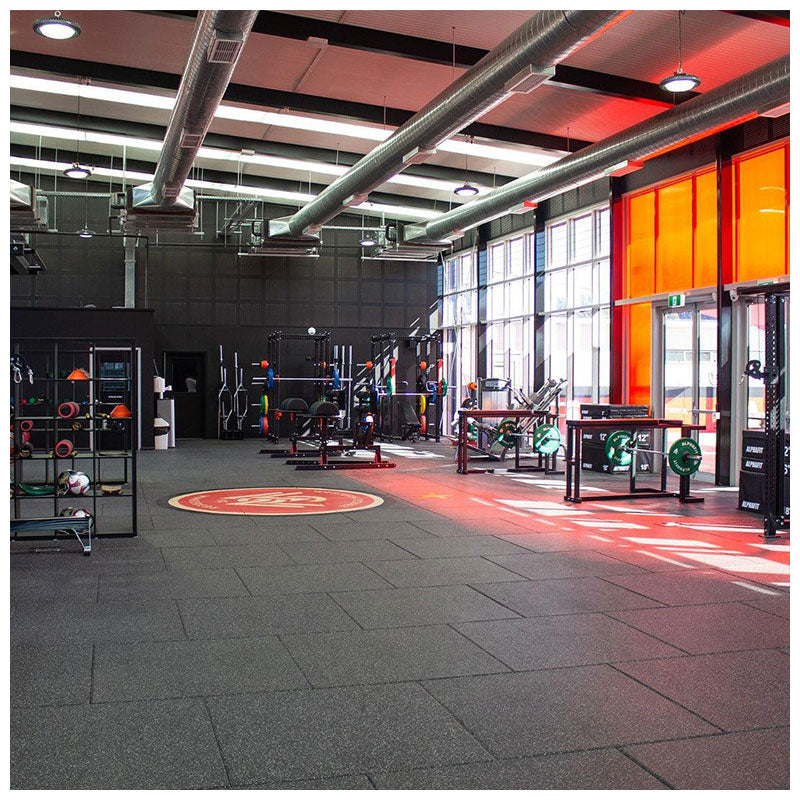

With a unique self-locking feature, Konnecta is Sprung's Premium tile solution for professional gym and training areas.

The Konnecta 20mm tile is formulated from quality HD rubber, has a simple assembly and offers maximum structural support (the tiles remain in position) during high impact activity.

Also see Snowflake Gym Flooring Tile and Seahawk designer gym flooring.

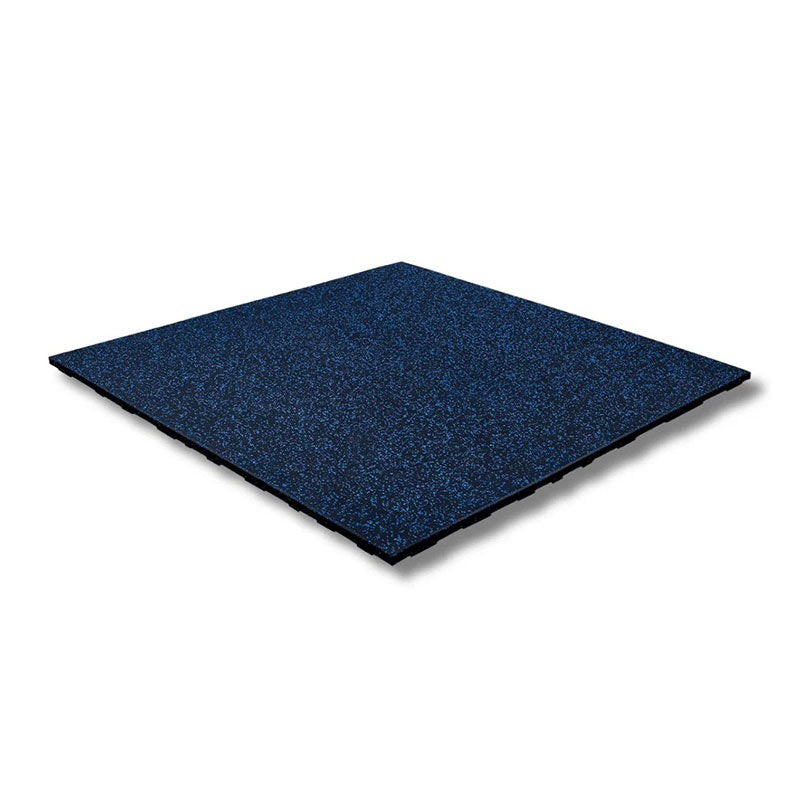

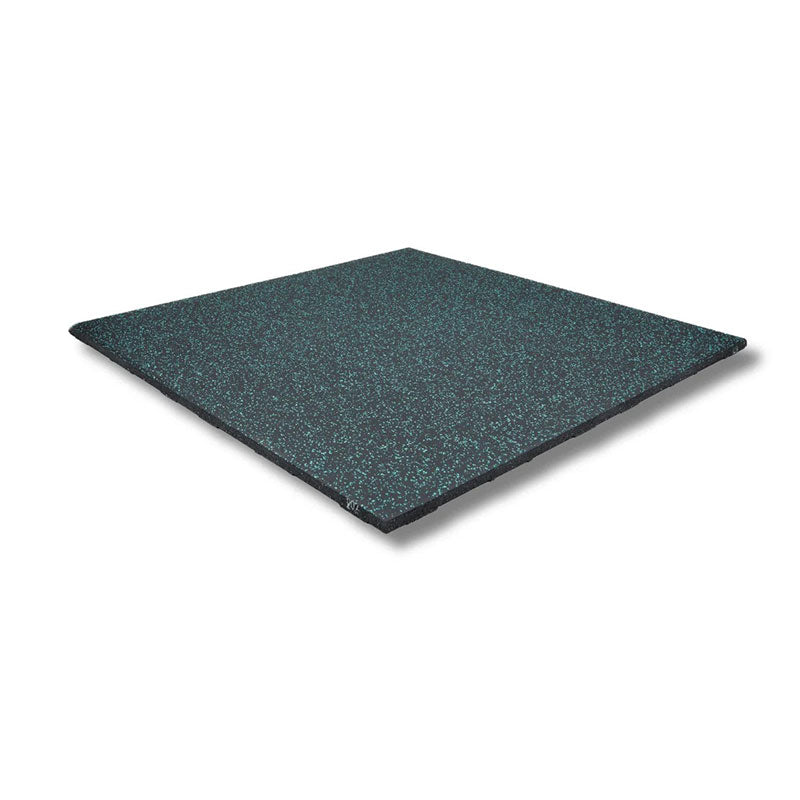

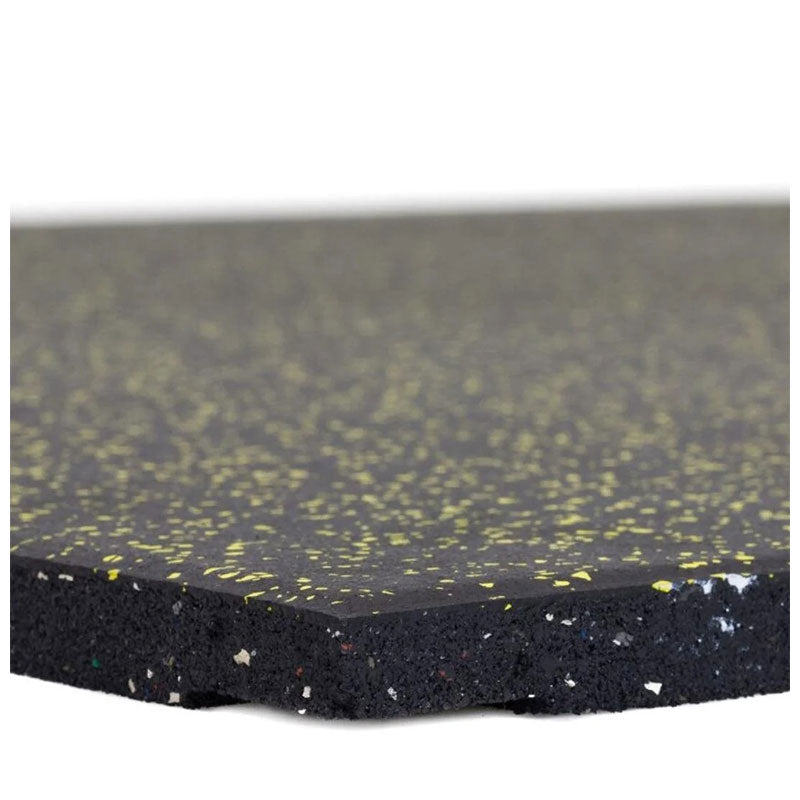

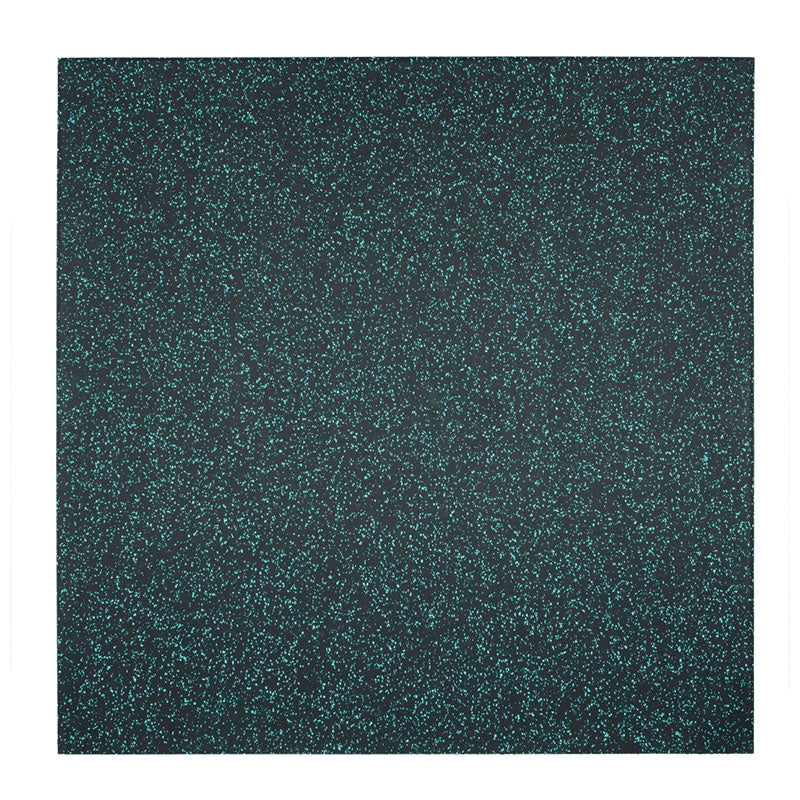

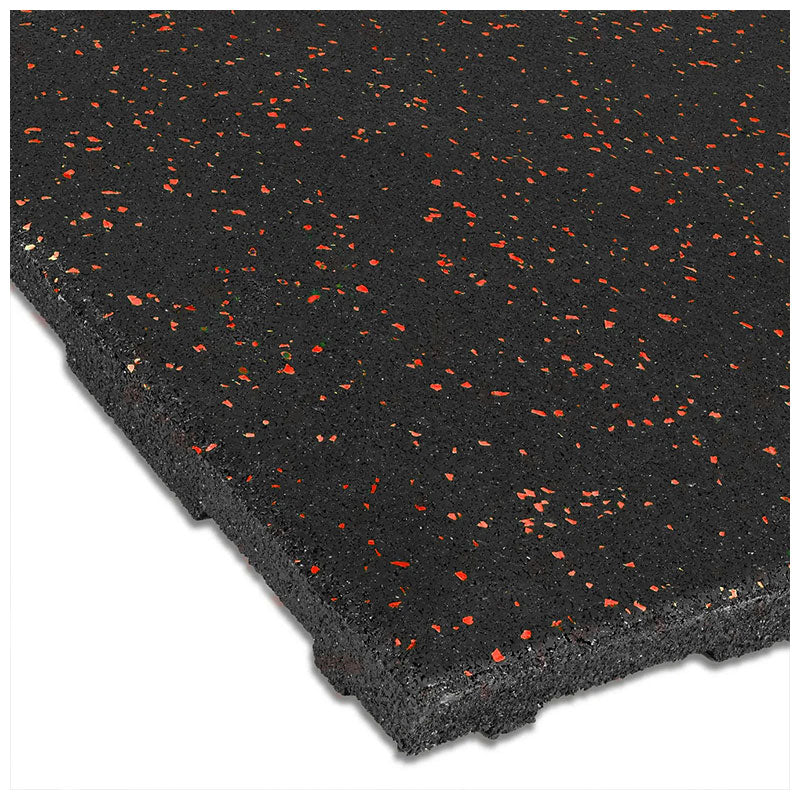

The 20mm Konnecta Fleckz is available in 5 complementary colour options adding tone, texture and character to any modern studio.

Please note these tiles are not a stock item.  Lead time is approx 7-10 working days

Matching edge ramps/corners are available in the following colour options.

  • Blue - Curved Design
  • Green
  • Red
  • Light Grey
  • Dark Grey - Curved Design

Access Full Specification Library

Dimensions:

Thickness: 20mm

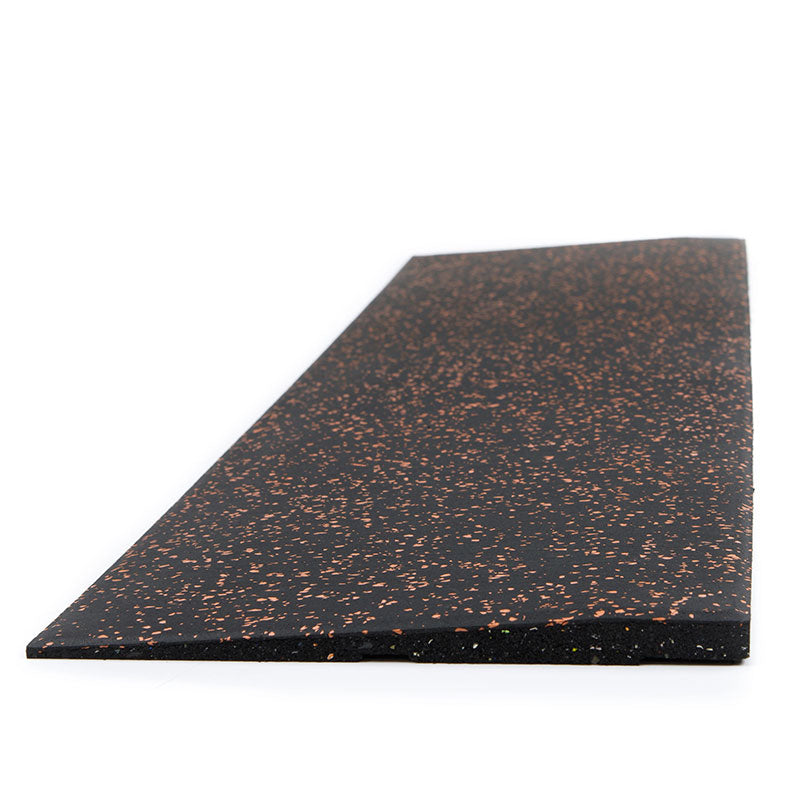

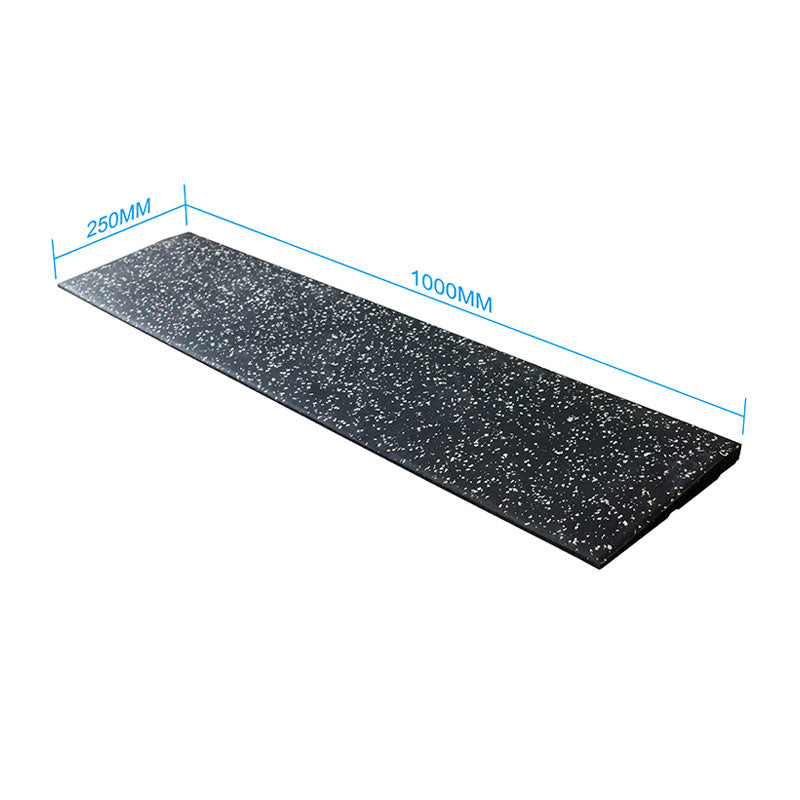

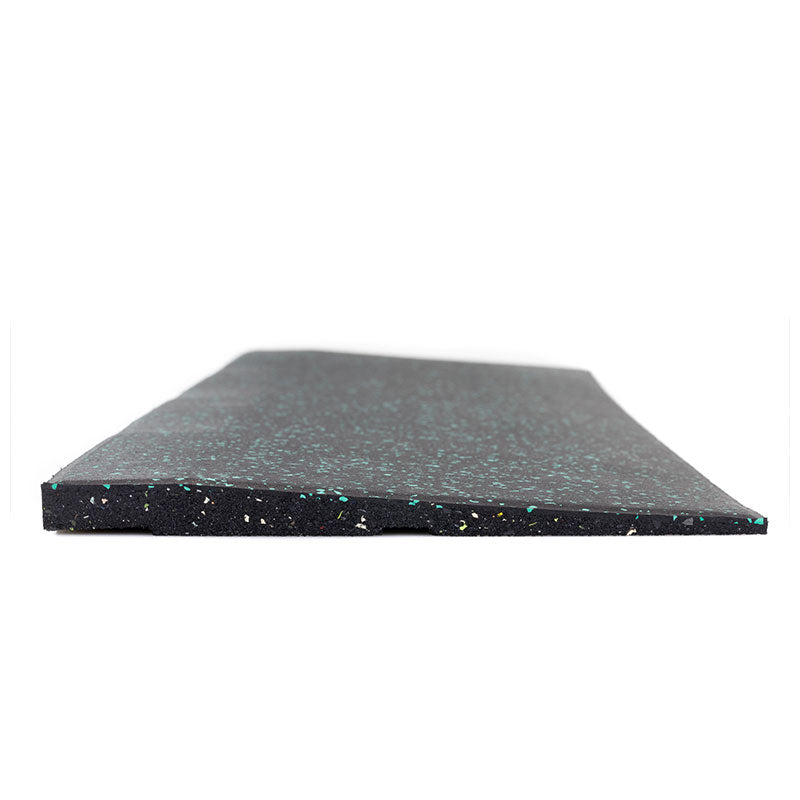

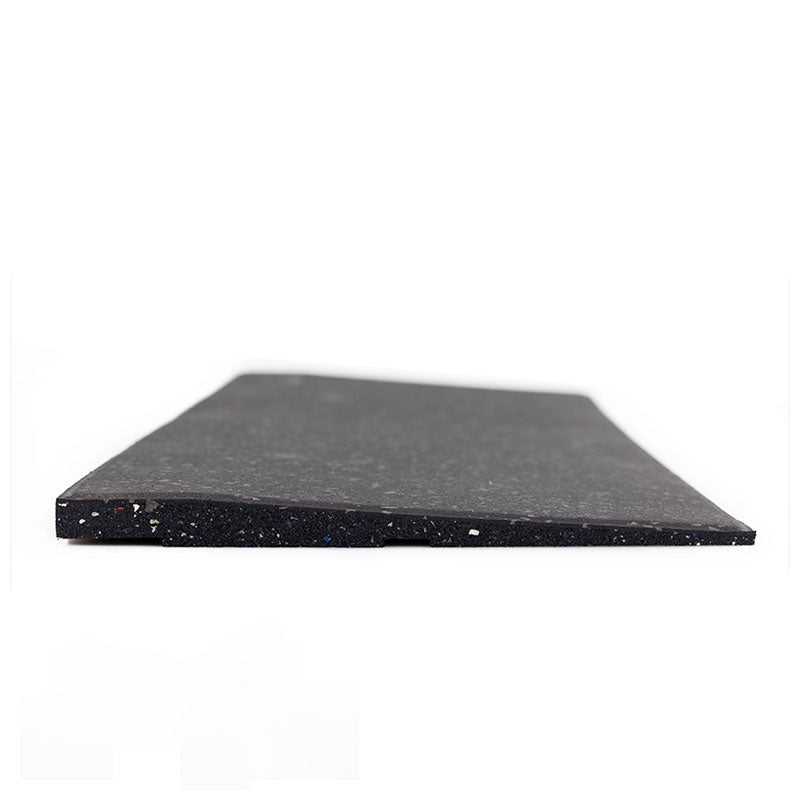

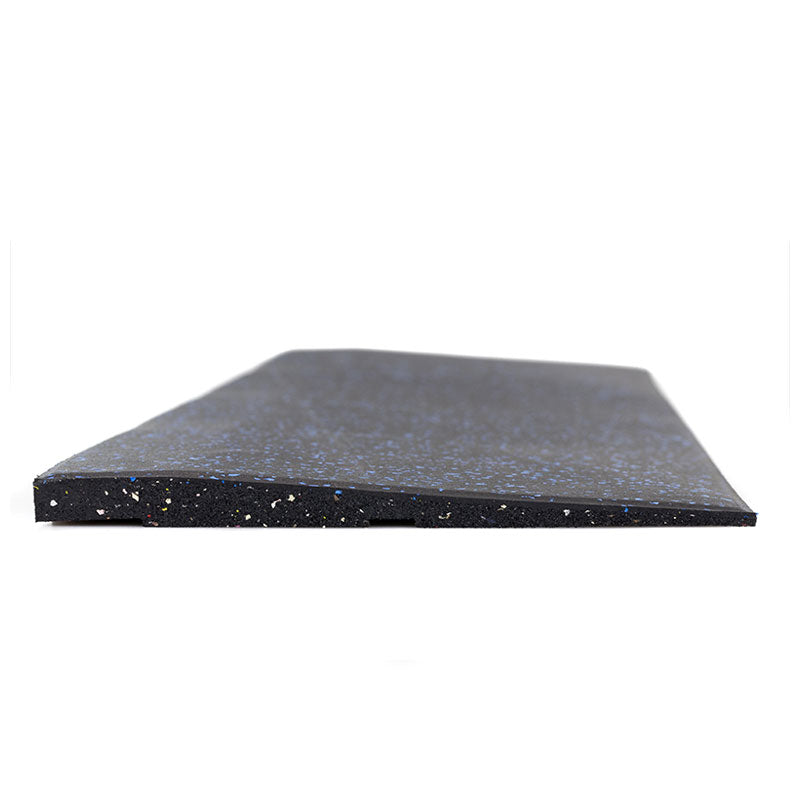

Edge Ramps - 1000mm x 250mm

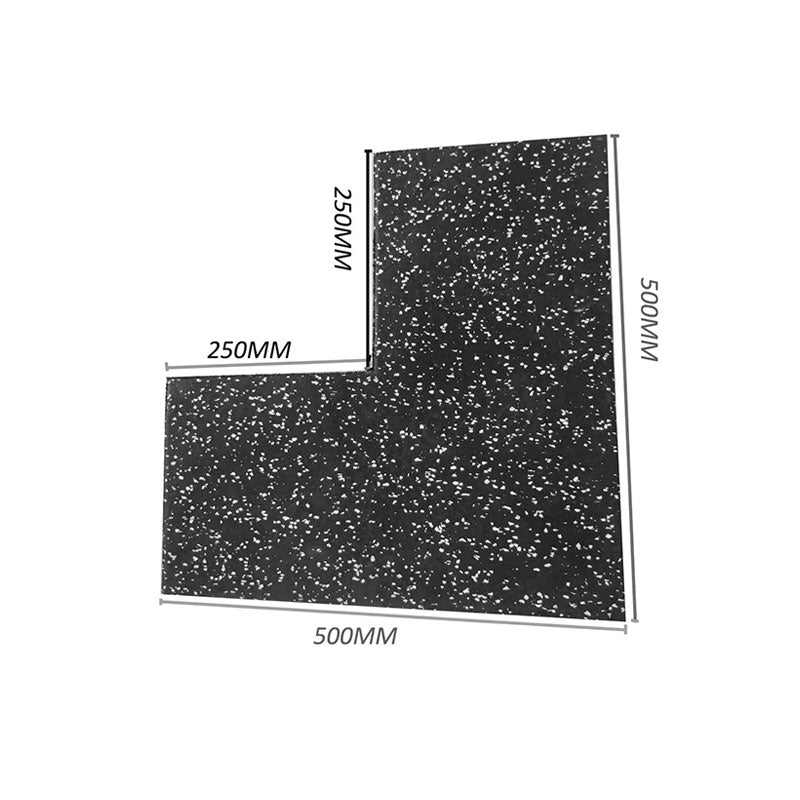

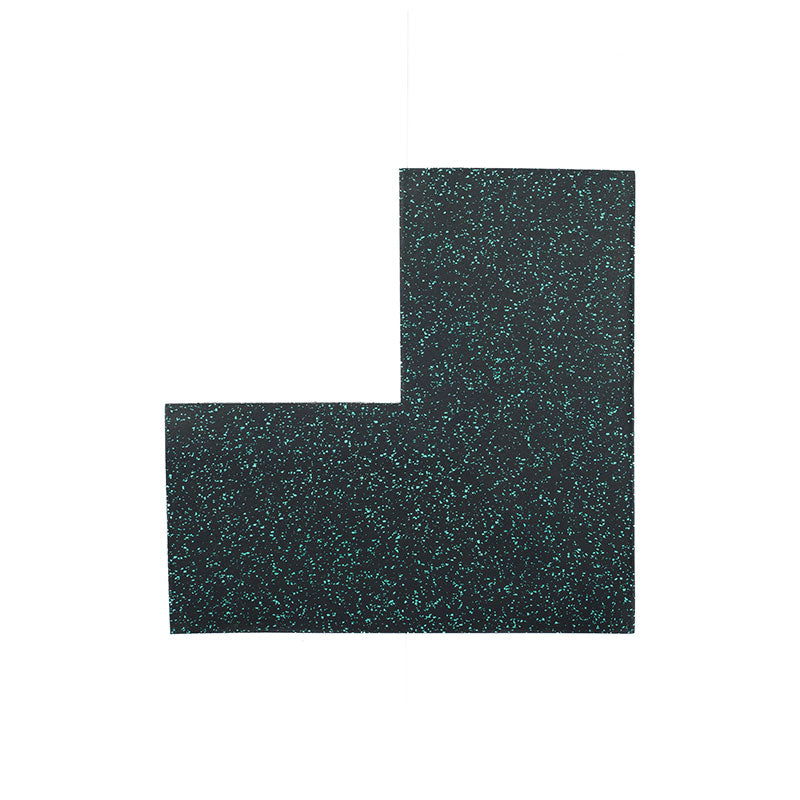

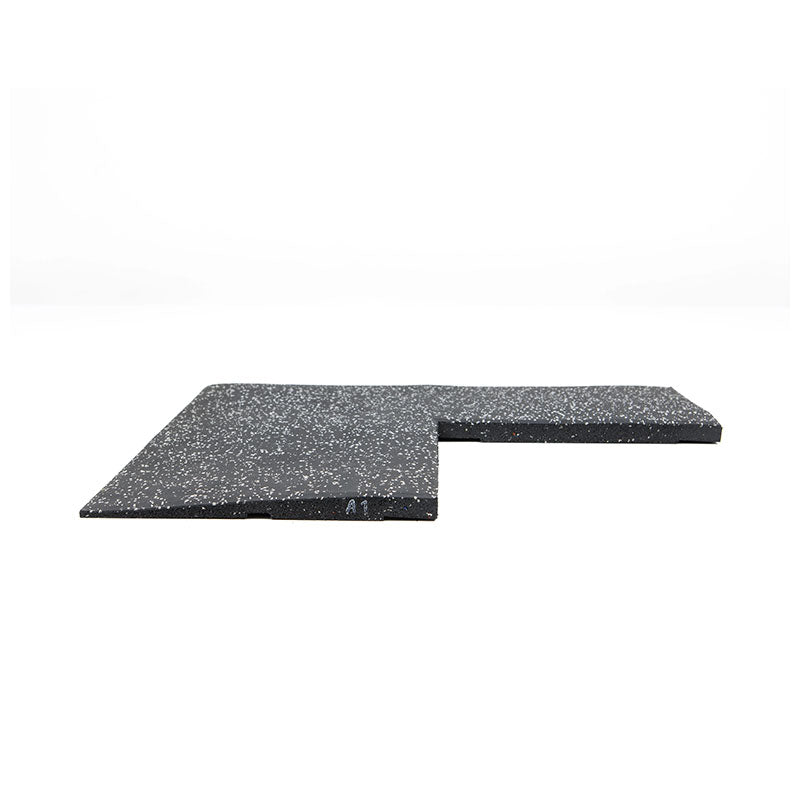

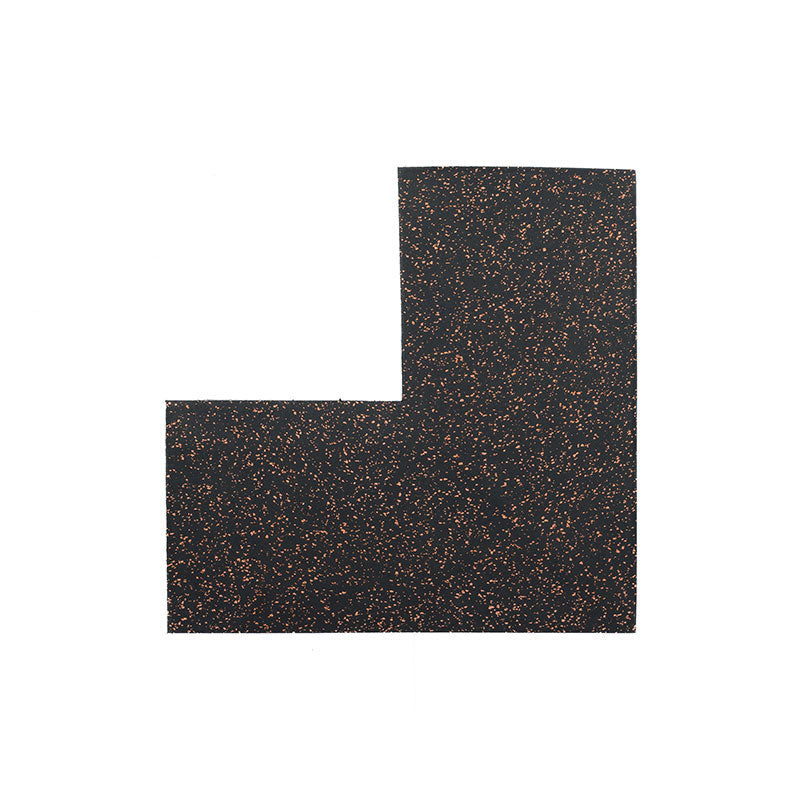

Corners - Internal Edge 250mm x 250mm / External Edge 500mm x 500mm

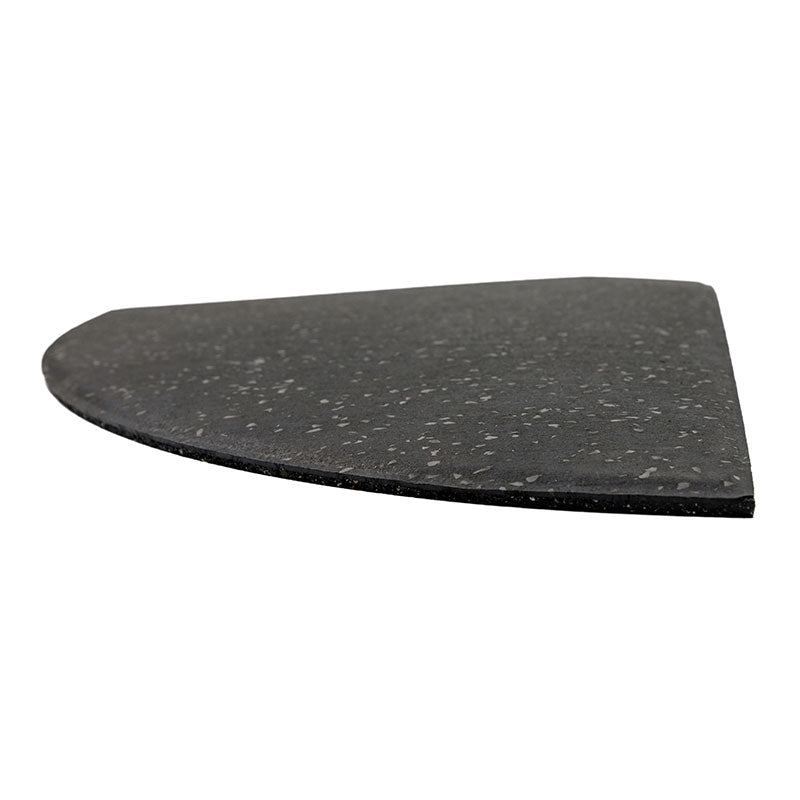

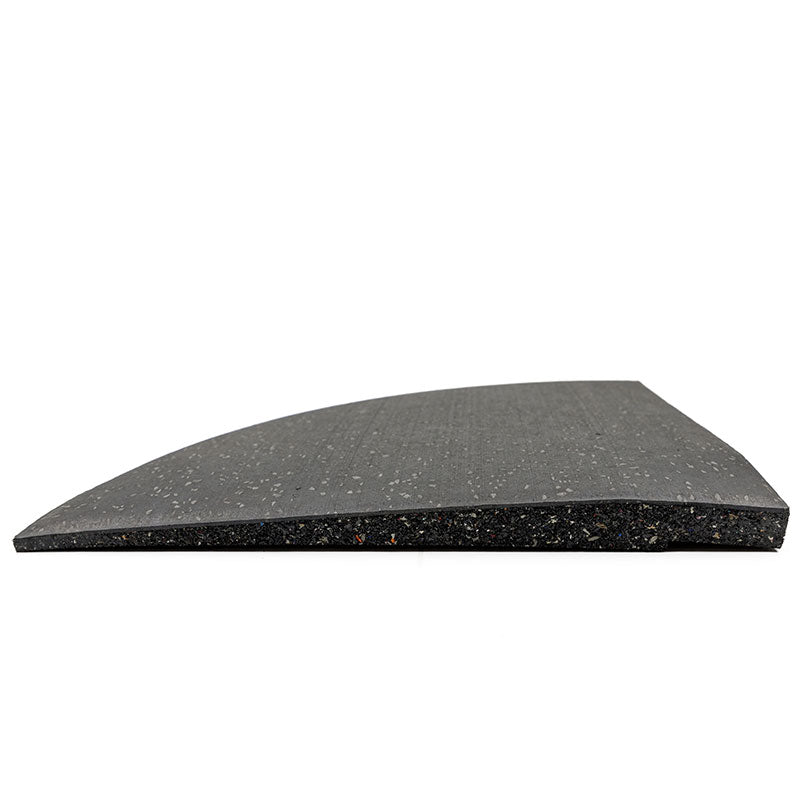

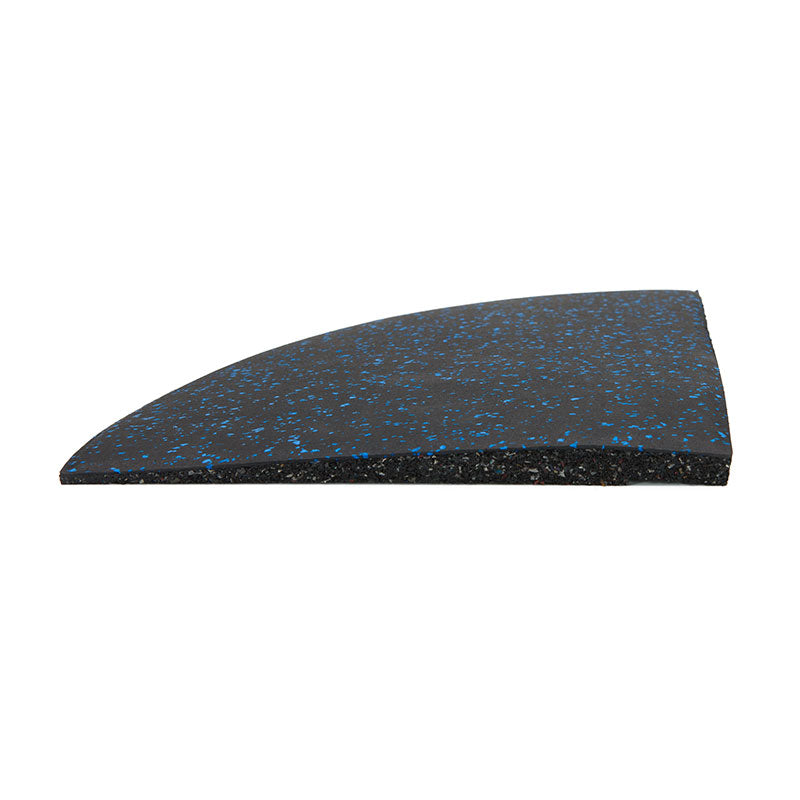

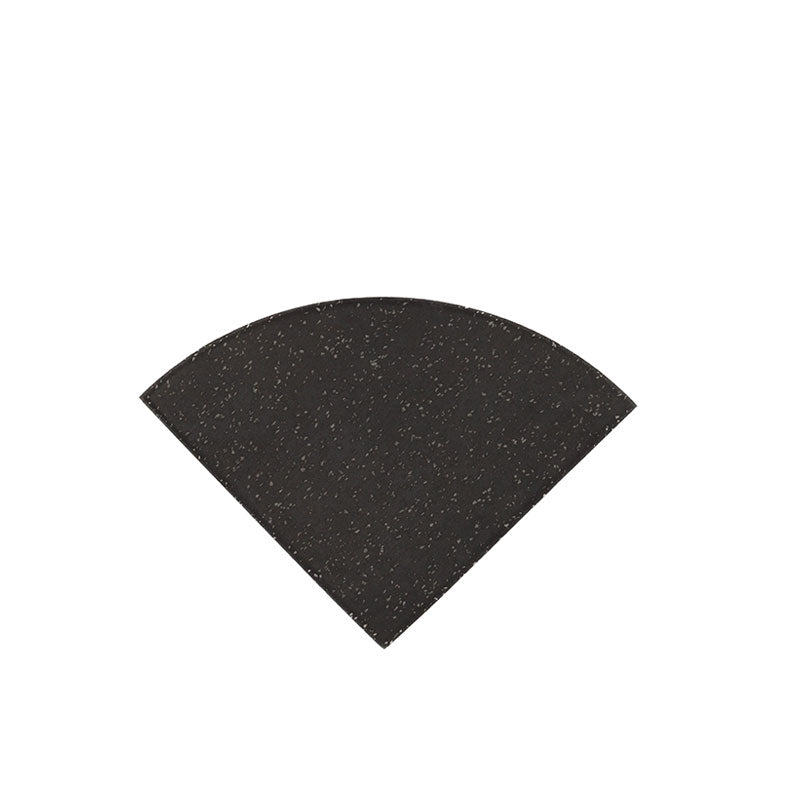

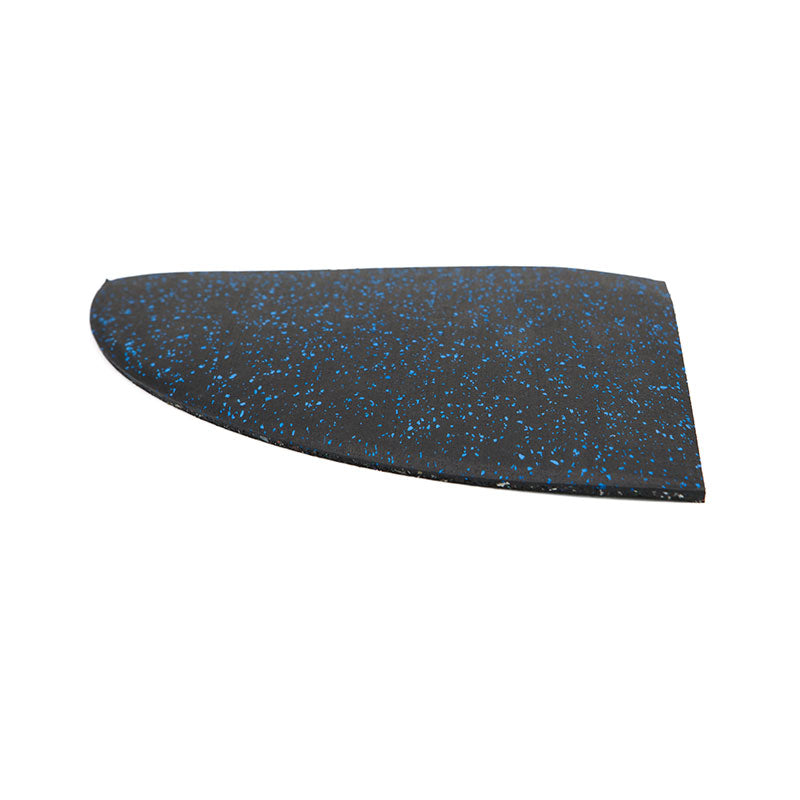

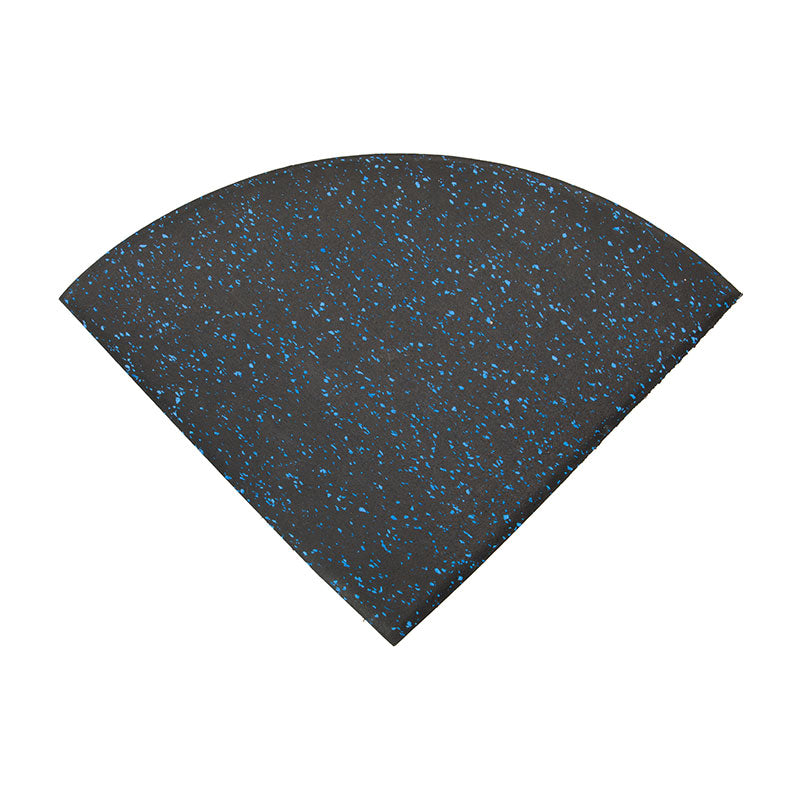

Curved Corners - 250mm x 250mm

All tiles come with a 4 year warranty against premature cracking and colour defects.

Unlike cheaper alternatives, we only use Binder (adhesive) which allows for an odourless rubber.

Applications

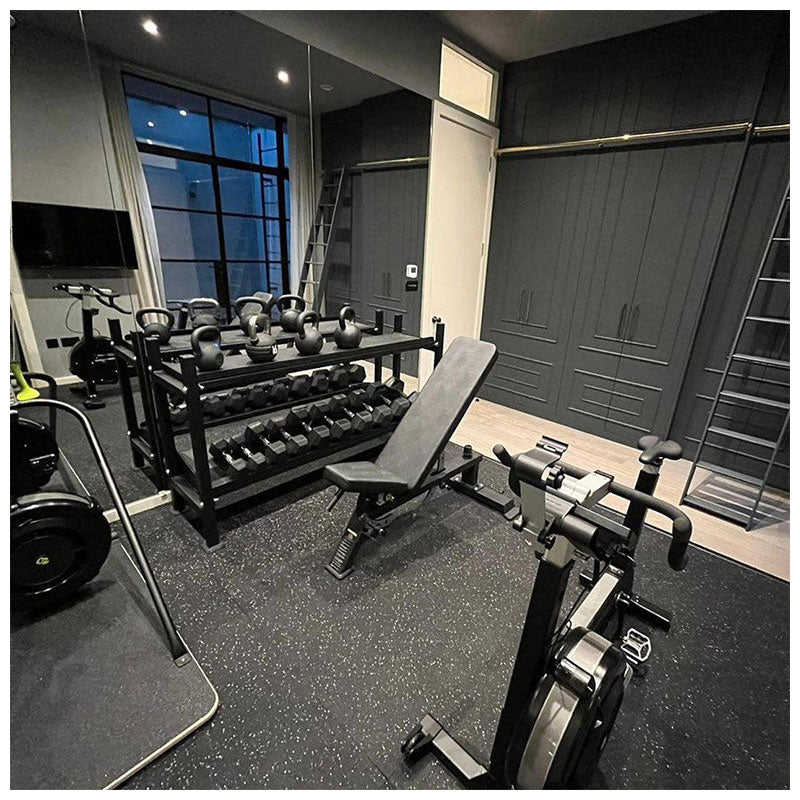

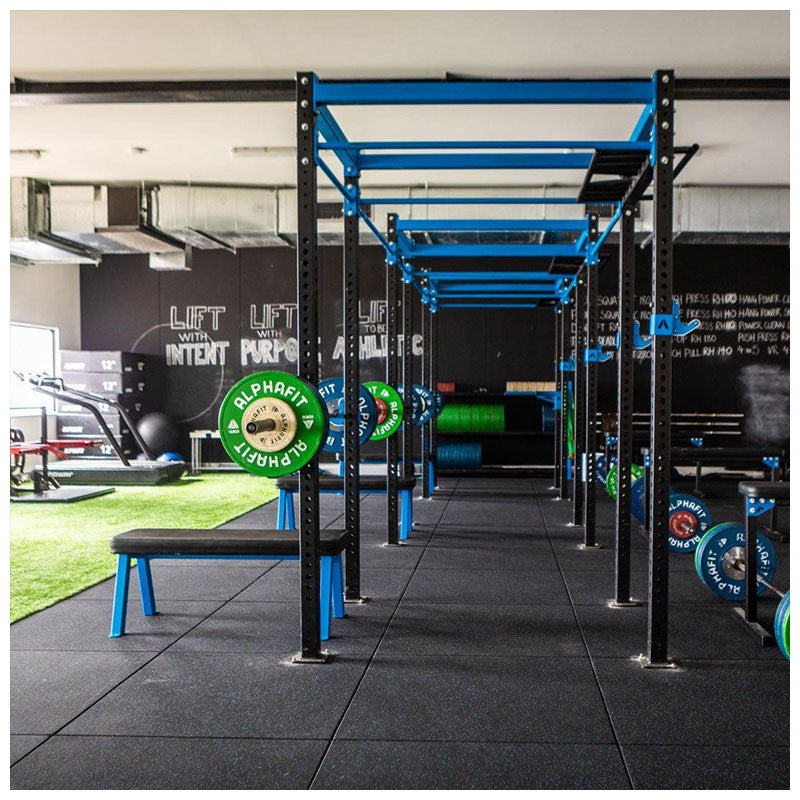

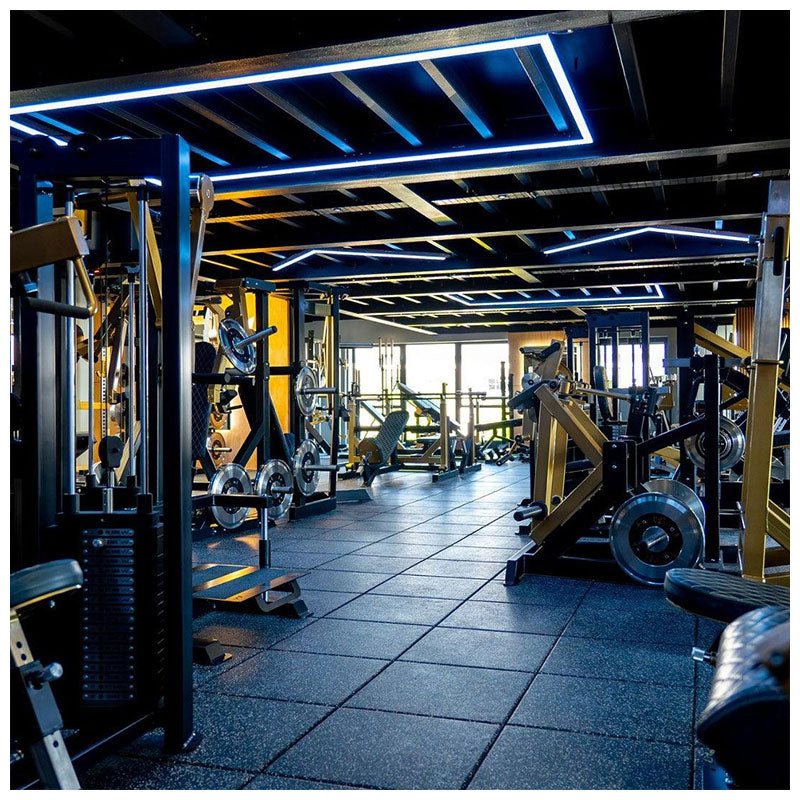

Cross Fit, Functional Training, Strength & Conditioning, Medium to Heavy Weights

NOTE: FREE PLASTIC CONNECTOR PIECES COME WITH TILES

Installation

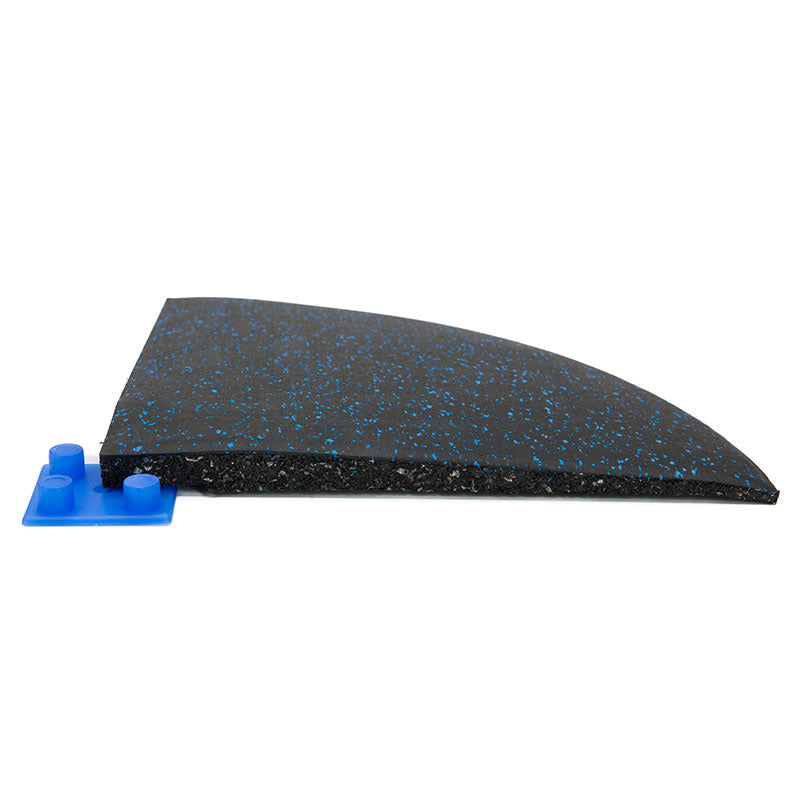

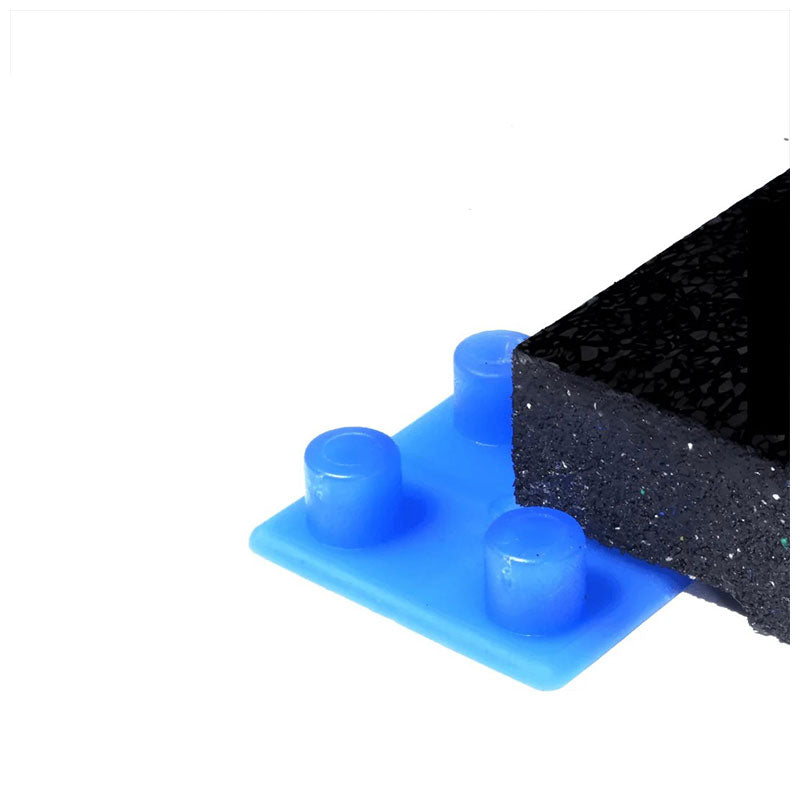

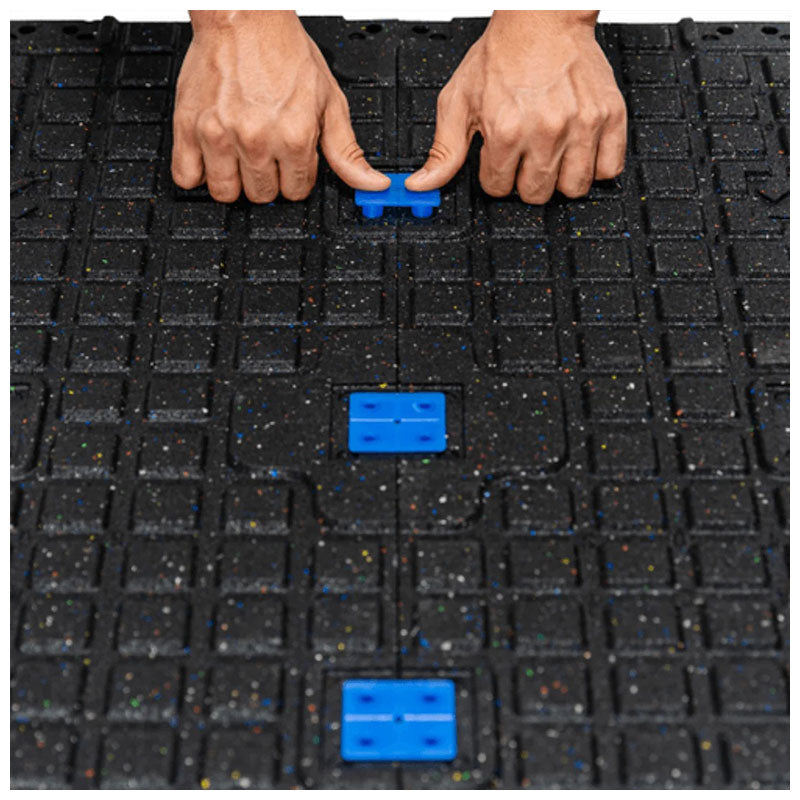

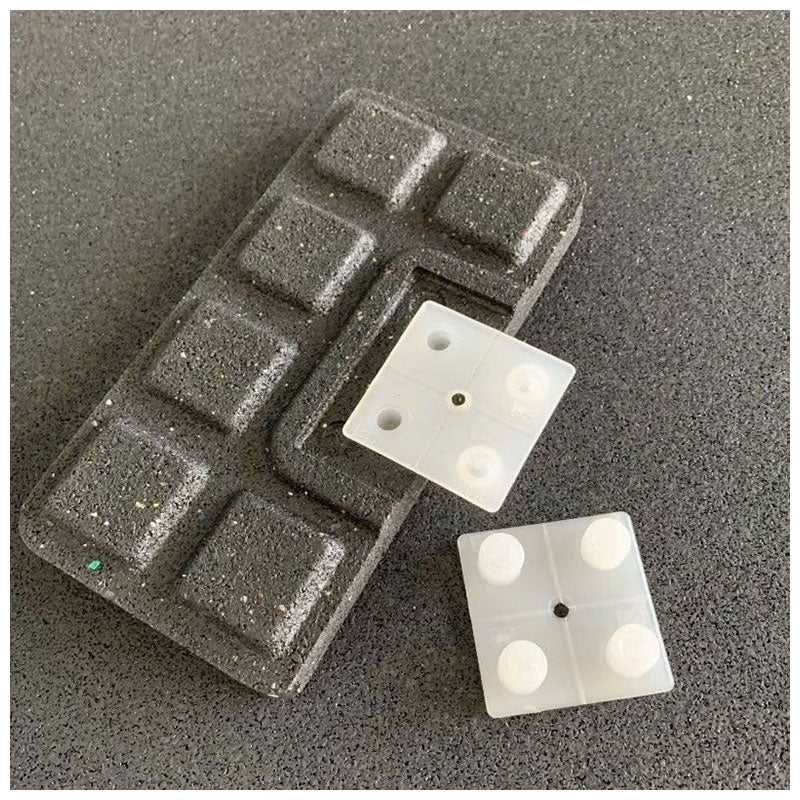

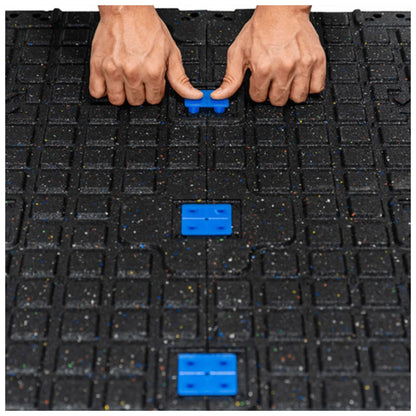

Connector pieces (hidden) are inserted underneath each tile to securely interlock them together, keeping them in place.  The tiles can also be loose laid or glued using adhesive.  The rubber can be cut to size using a utility knife.

The elastic tiles are produced under high temperatures and will shrink after production.  This means that there is always a dimension tolerance on length, width and thickness.  Due to the different dimensions of the tiles, we advise installing the tiles 'half brick wise' and not corner to corner.  It is important that the outer tiles are fixed between a wall or profile so that all tiles can be placed under compression.

Sub-floor

The sub-floor requires to be level, firm and dry.

Installation

View PDF Installation Guidelines or watch our Video Tutorial

Cleaning

View Cleaning & Maintenance Guide

Product

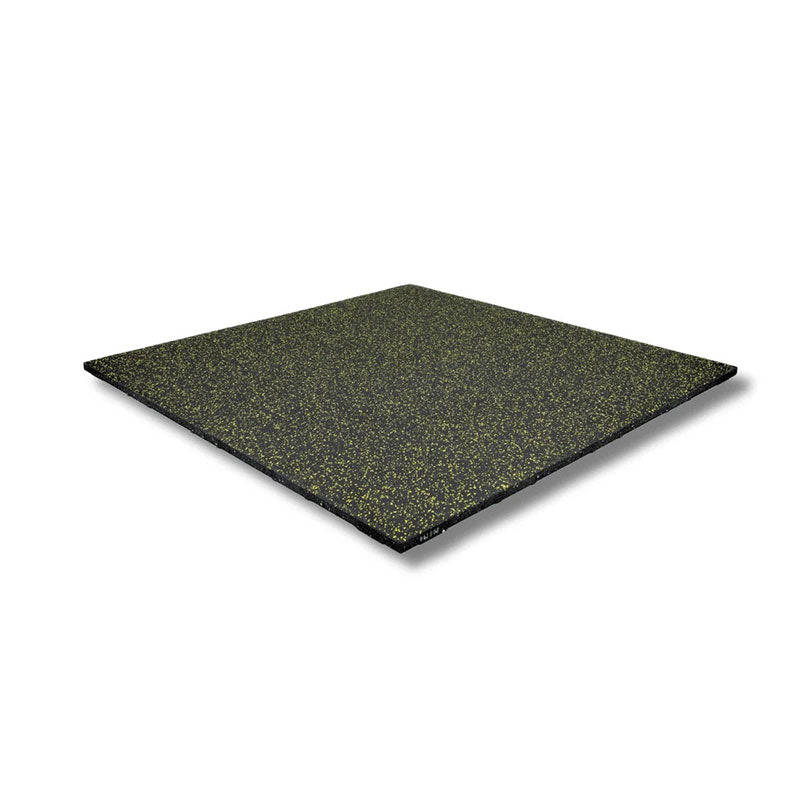

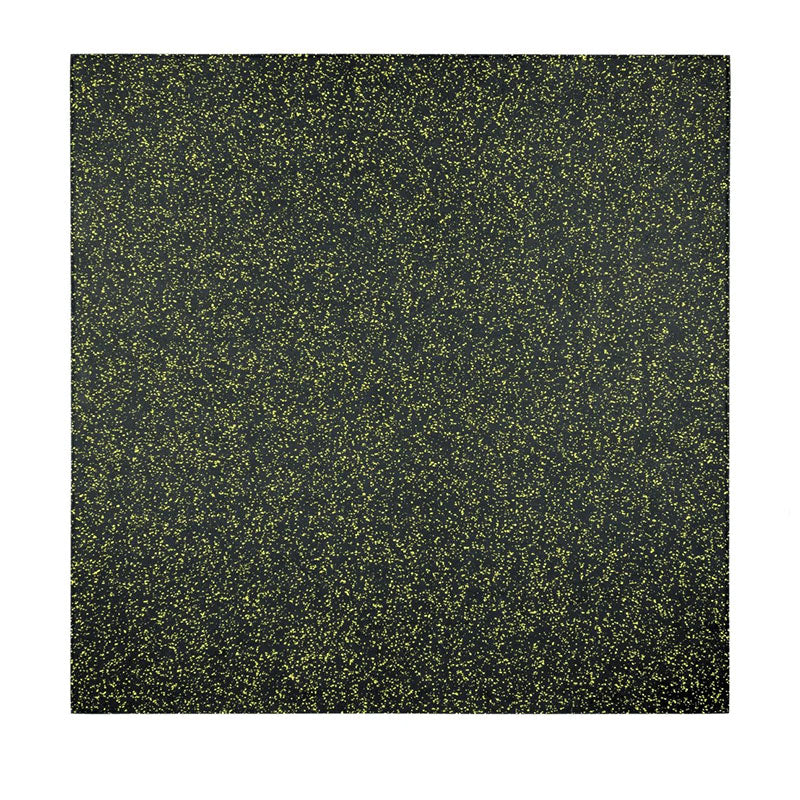

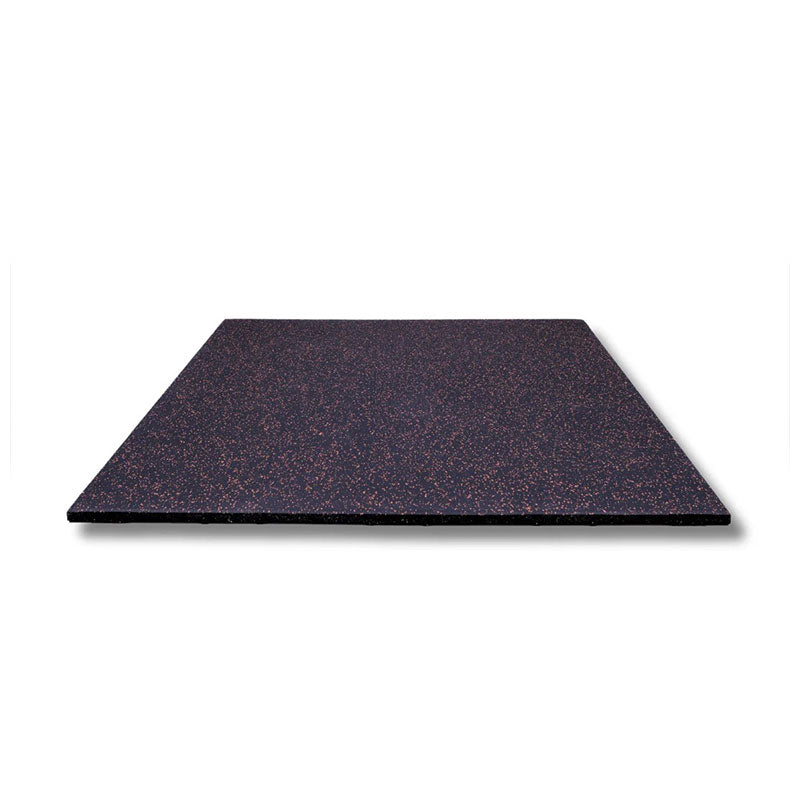

Dimensions 1000mm x 1000mm
Thickness 20mm
Colour(s)

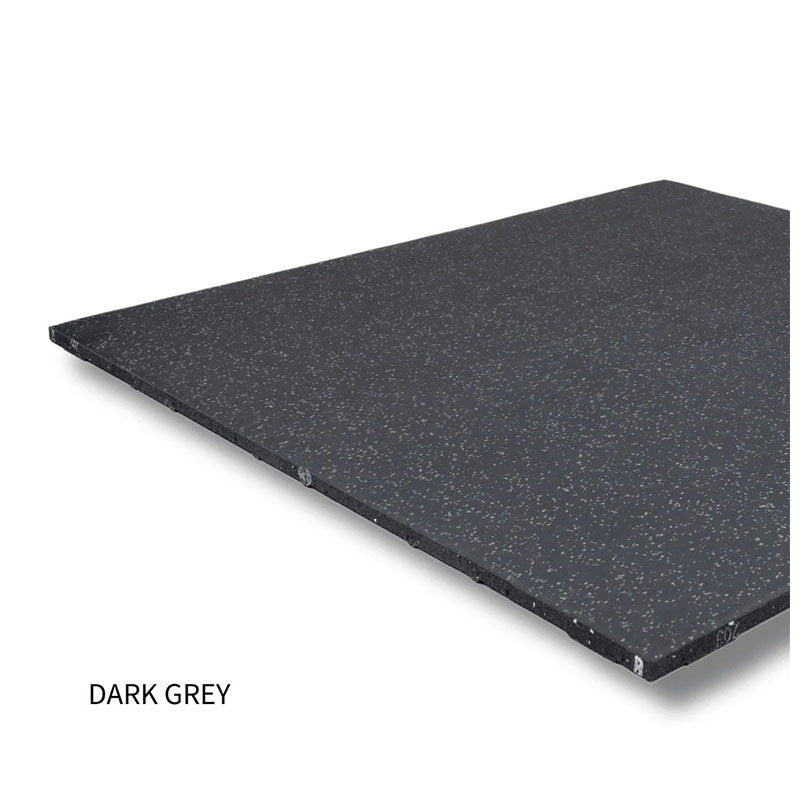

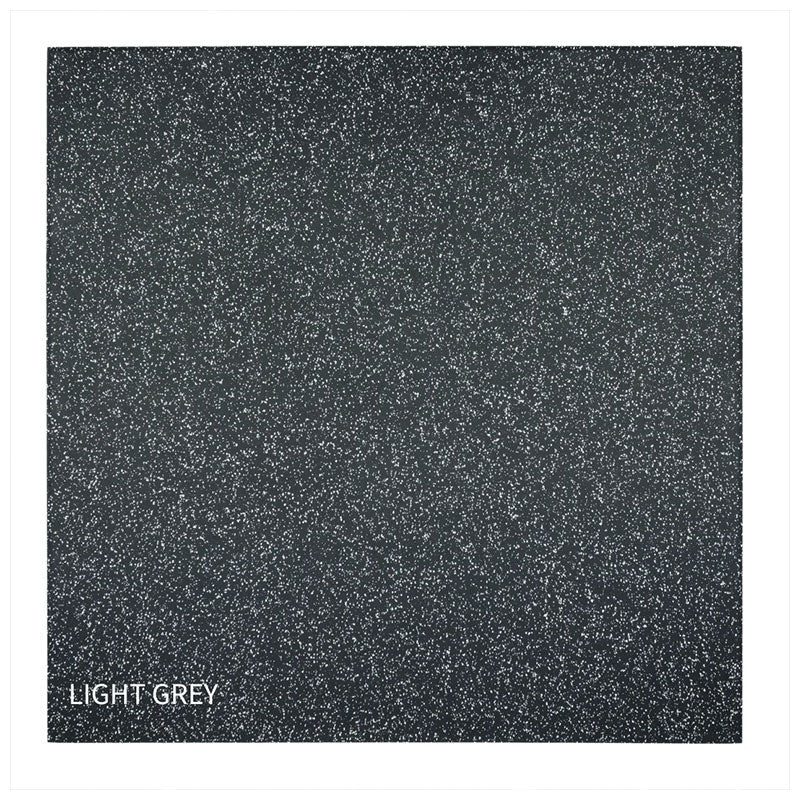

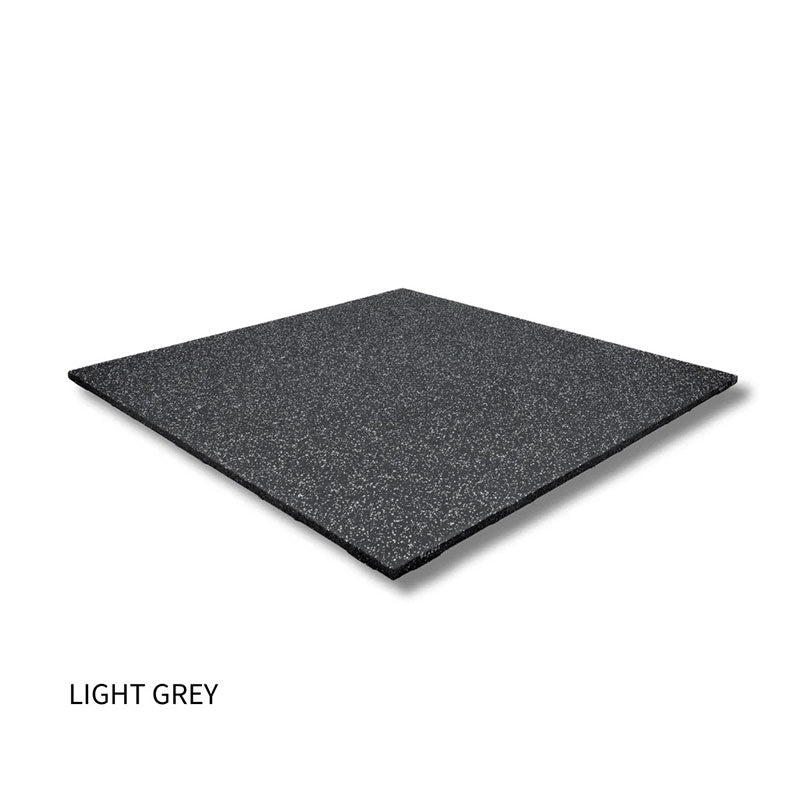

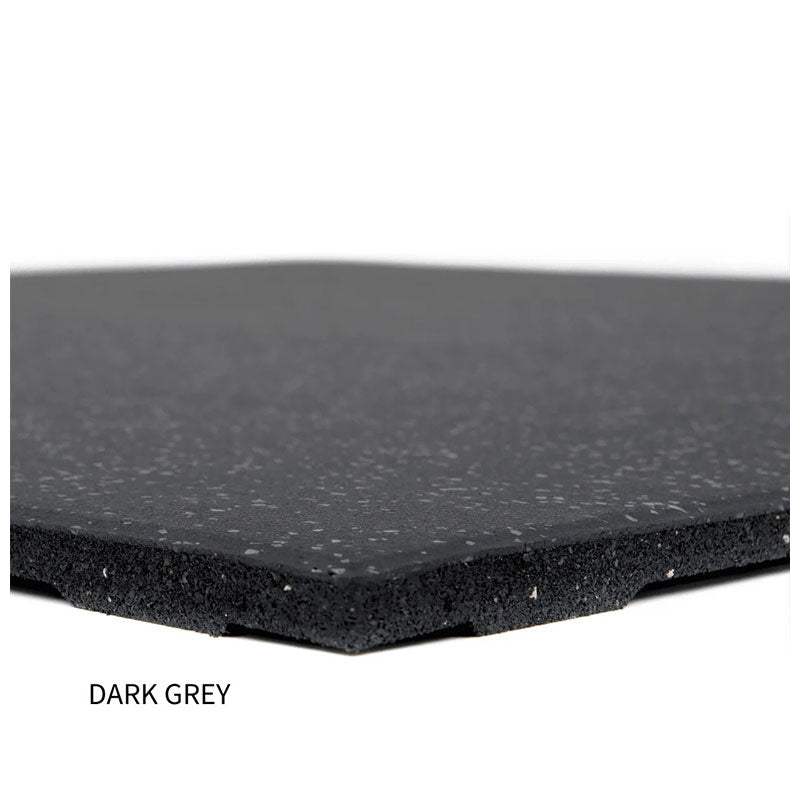

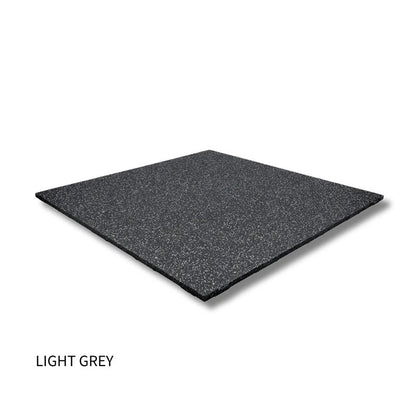

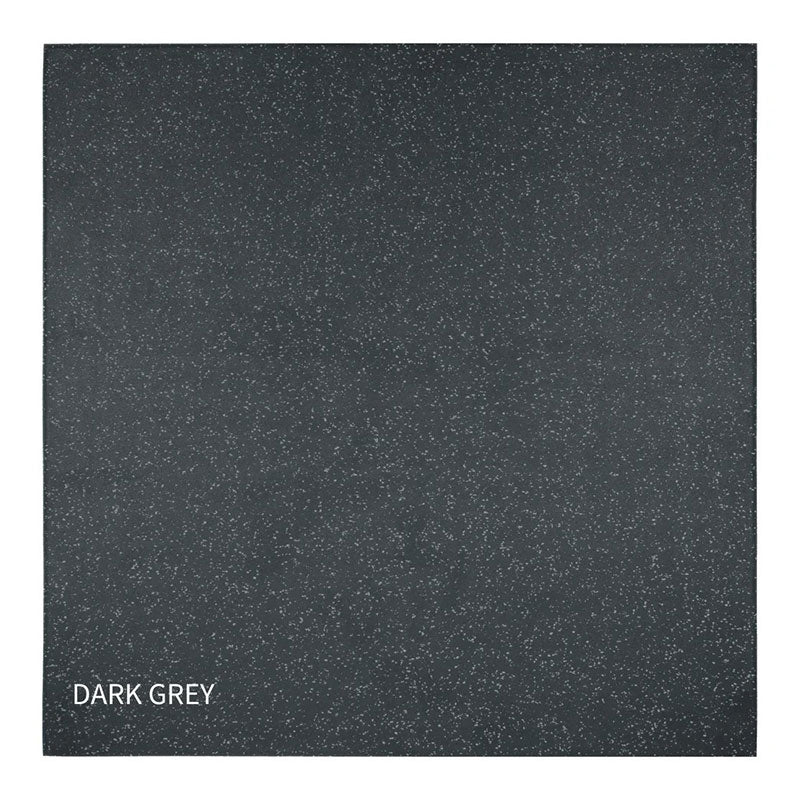

Light Grey/Dark Grey

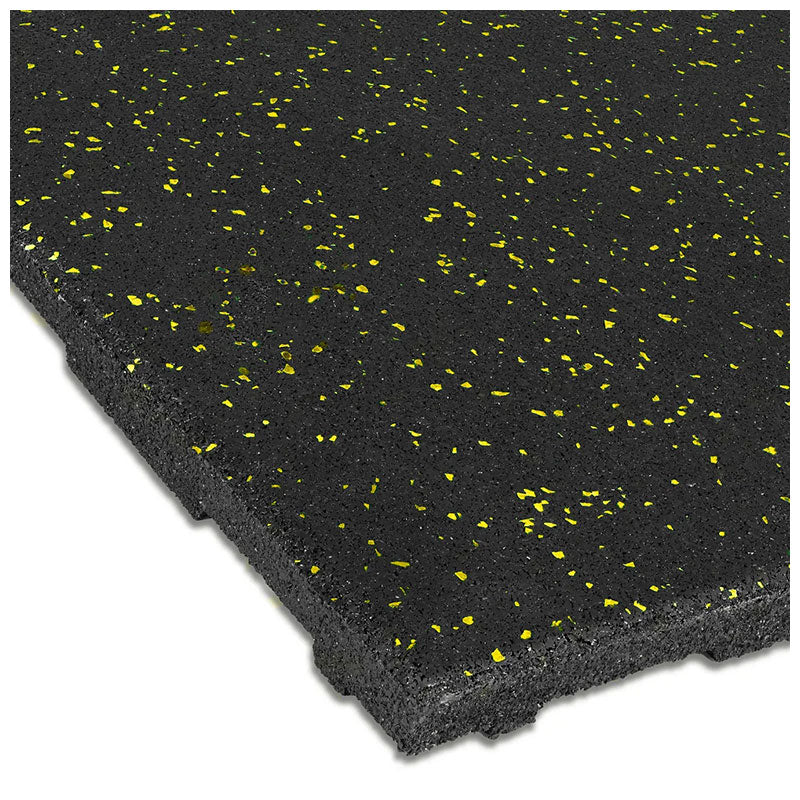

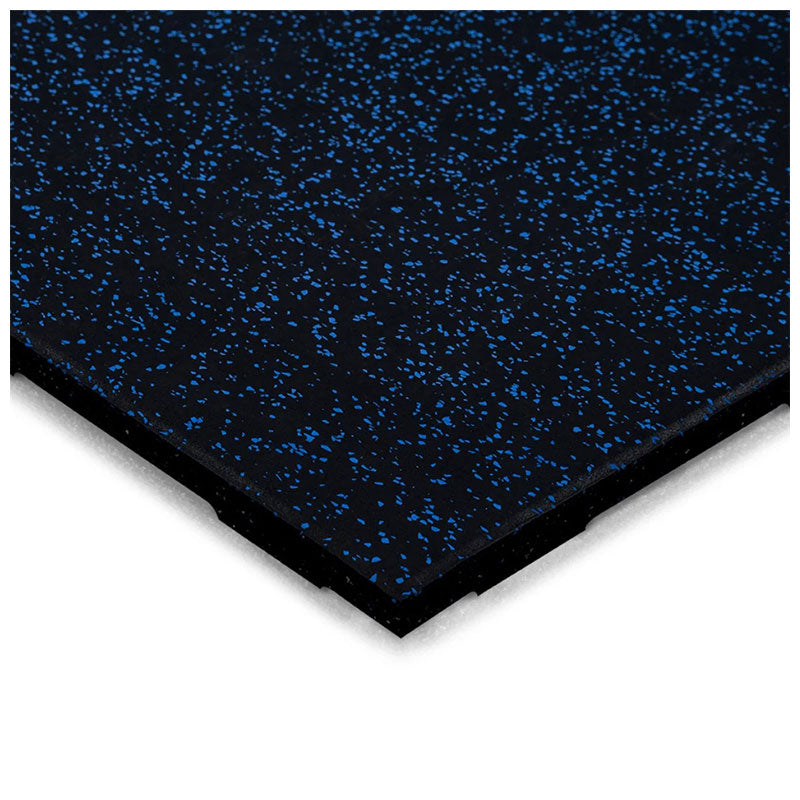

Red/Blue/Green/Yellow

Shape Square

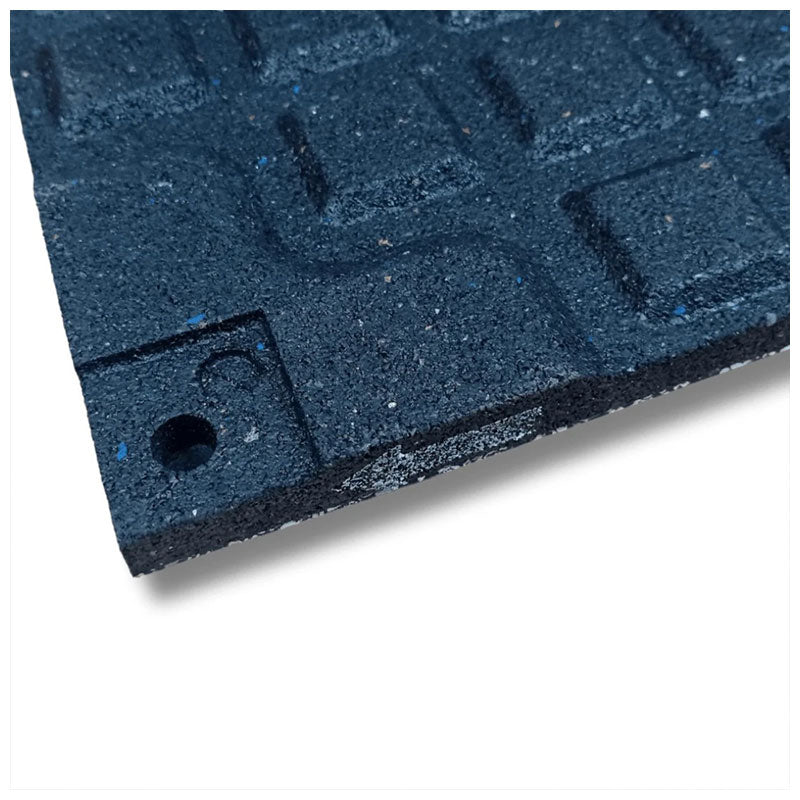

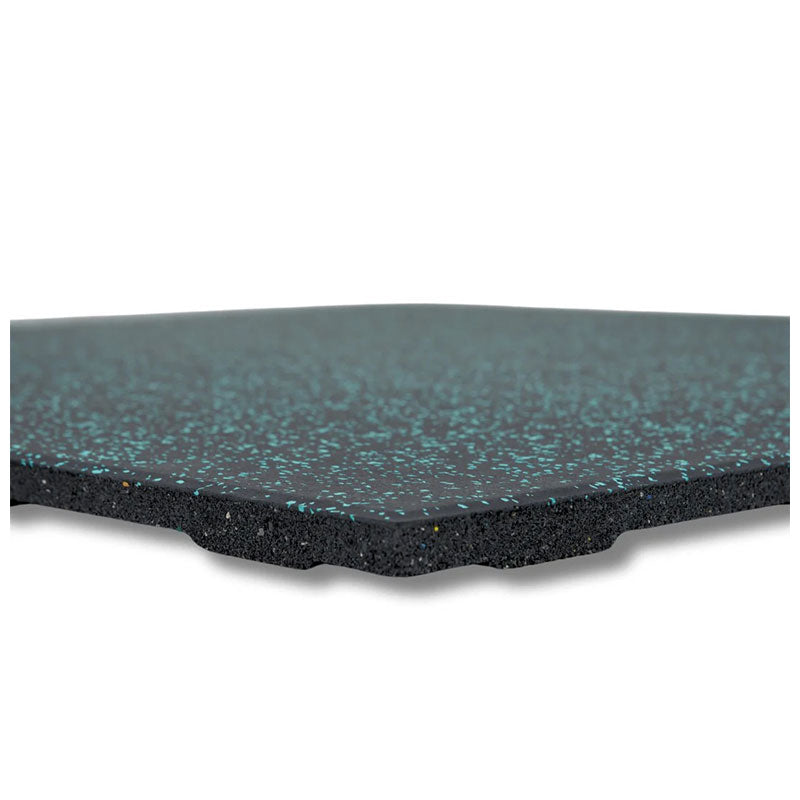

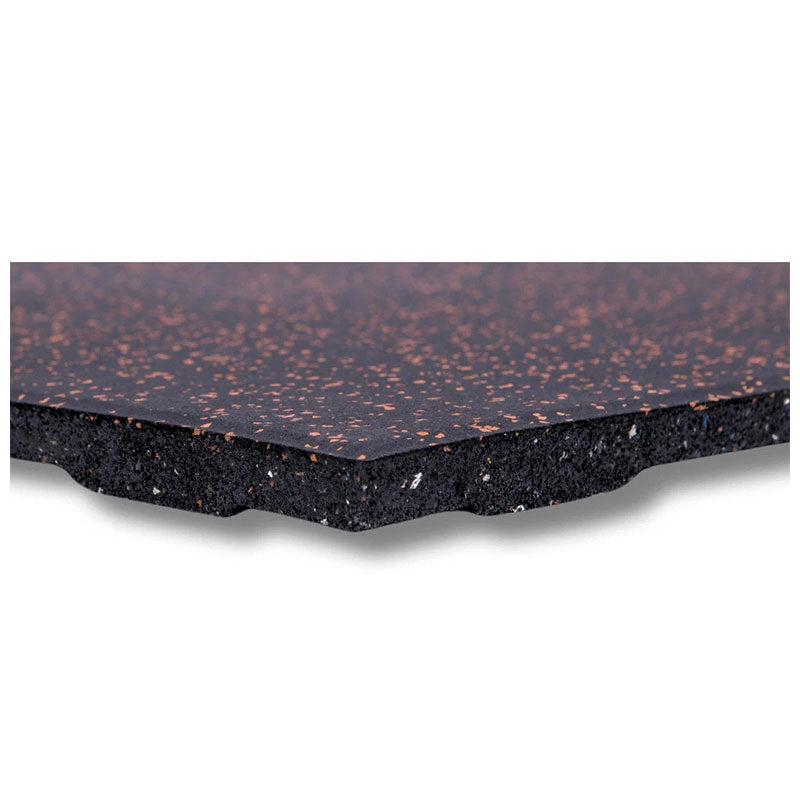

Profile Bevel Edge and Square Studded Underside with Holes for Connector Pieces
Installation Plastic Connection System (included)
Maximum Weight Drop 140kg
Applications Functional Training, Free Weights up to 140kg, Cardio & Strength, CrossFit



Material

Composition 70% Recycled EPDM Rubber & 30% Recycled SBR Rubber



Technical Specification
Width + 4mm
Length + 4mm
Thickness + 2mm
Bulk Density Toplayer Approx 1400kg/m3
Bulk Density Sublayer Approx 1000kg/m3
Shock Absorption 61% | EN 14808
Head Injury Criteria (HIC) Test 1.3m | EN 1177
EU Fire Classification E F1
Vertical Deformation 5.0mm | EN 14809
Thermal Resistance 0.16m2.K/W
Sound Insulation 21dB Reduction
