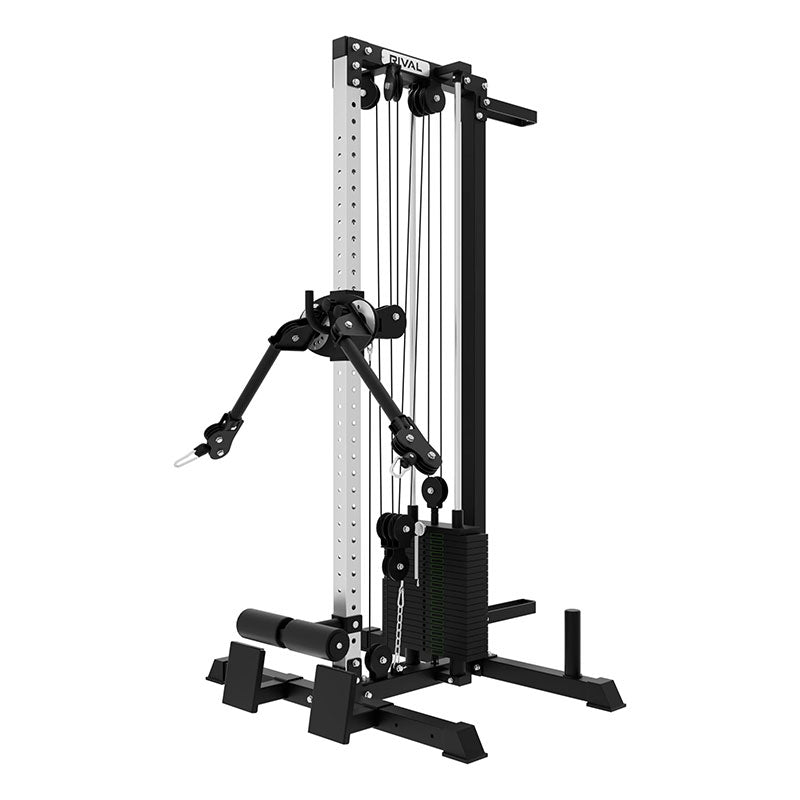

Rival Wall Mounted or Freestanding Adjustable Free Arm Functional Trainer Pulley System - 105KG Weight Stack

Rival Strength's Wall Mounted or Freestanding Adjustable Free Arm Functional Trainer Pulley System offers 360-degree pivoting handle positions from high to low, with integrated 105KG Weight stack on a 1:1 and 2:1 weight ratio.

This cable system doesn’t just challenge compact single arm cable systems, but dual action pulley systems as well. Not only does the cable system provide use for 1:1 ratio single stack exercises like lat pulldowns, it also offers a 2:1 ratio which it optimal for exercises like cable flys.

Looking to add the Aluminium Pulley Wheels at a later date? These can be purchase seperately here.

Key Features Include:

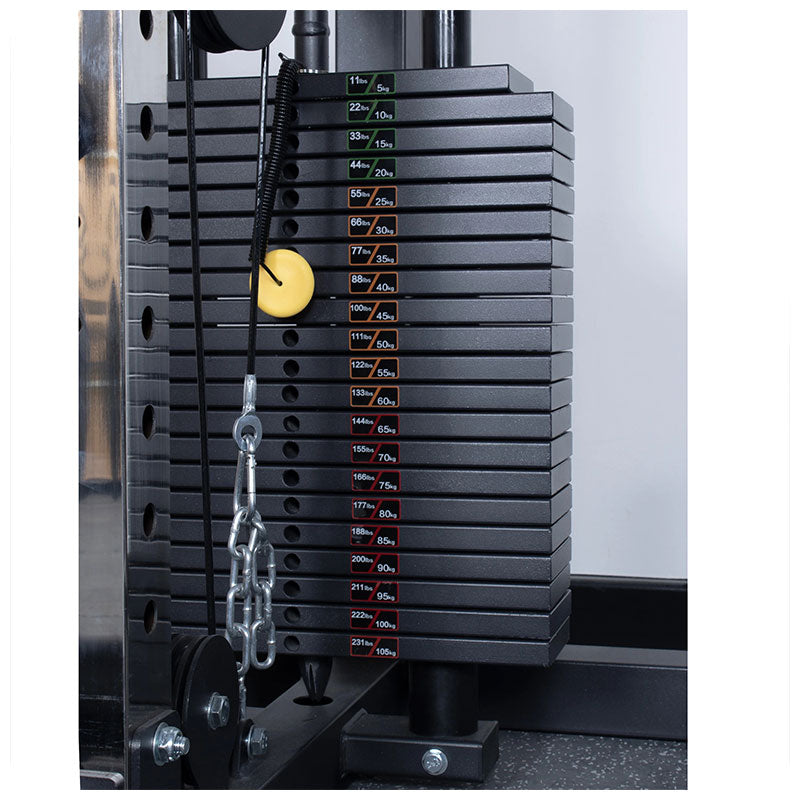

• 105KG Weight stack
• 2x 180 degree free motion pivoting arms
• Option to keep freestanding (with use of weight plates as a counter balance)
• Can be wall mounted with 2 x wall mount positions (High and low)
• Rotating handles
• Tricep rope, lat pulldown bar and D-Handles included!
• Removable low row footplates and leg support pads now included
• Weight plate storage
• 2:1 and 1:1 weight ratio

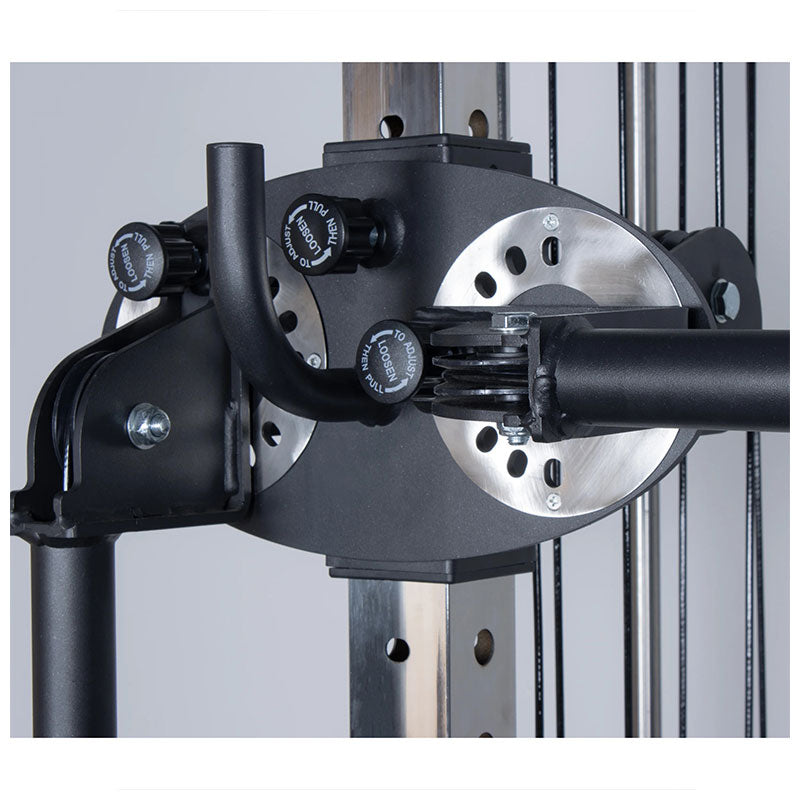

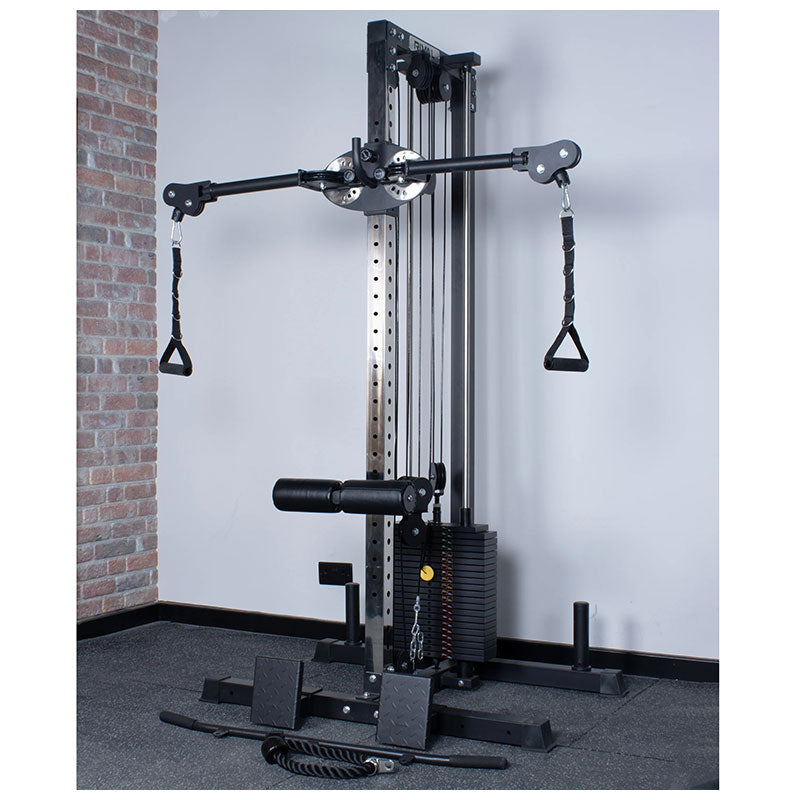

The new pivoting handle feature makes for a far superior cable system when compared to static handles, even when compared to a dual action pulley. By adjusting the handles out wide, the cable system is optimised for cable fly's. When the handles are positioned at the top or bottom, you can connect them for a 1:1 pulling ratio, better suited for lat pulldown or low row exercises where more weight is required (This is not possible on a standard dual action pulley).

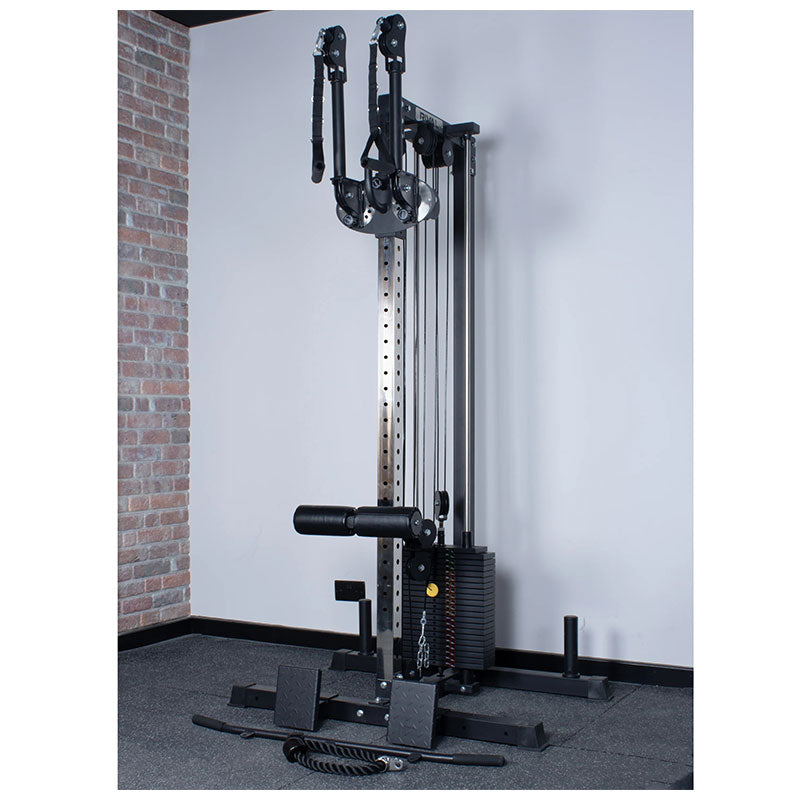

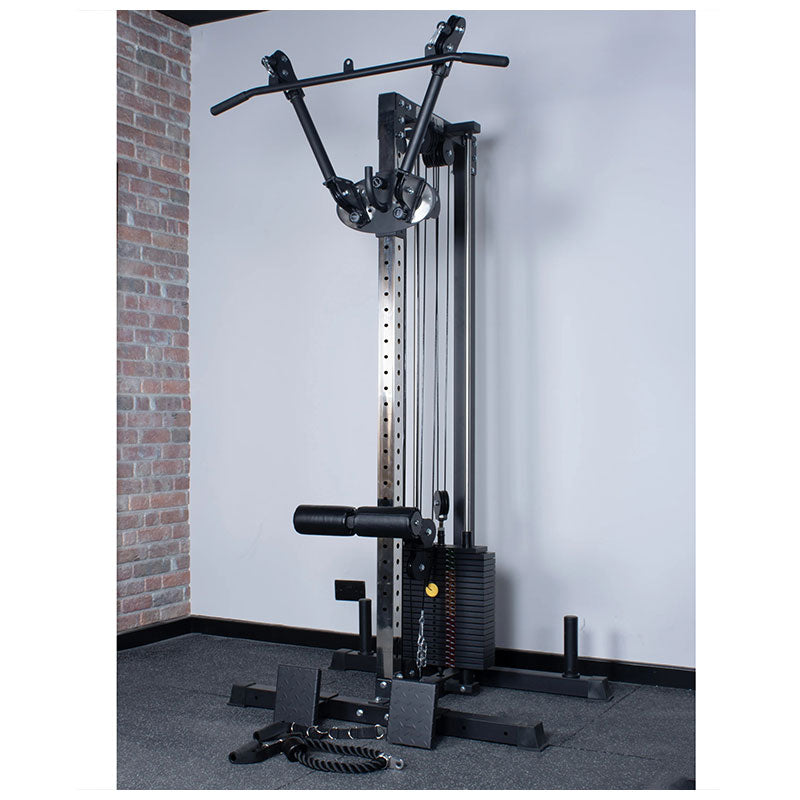

The machine itself may only be 2.01m tall, but with the handles positioned upwards and the trolley to the very top you can maximise the ceiling height of your space for the perfect pulldown with full range of motion. The maximum height of the product is 2205mm with the arms fully extended (a ceiling height over 2010mm is required for it to fit).

The dual handles can be easily adjusted up and down the main front upright. The machine includes two back stabilising points to mount onto your wall..

A 2:1 Ratio means the weight being lifted is half the weight loaded onto the plate carriage (40KG feels like 20KG), a 1:1 ratio you would be lifting the full weight loaded onto the carriage (40KG feels like 40KG). The benefit of a 2:1 ratio over a 1:1 ratio is the distance the handle can be pulled. The handle can move twice the distance compared to a 1:1 ratio, giving you more room for larger cable flies and any exercise that requires the cable to move further, while also offering smaller increments when adjusting the weight. Please get in touch if you have any questions on this, we would be happy assisting!

Product Details:

1 Year Warranty

Dual pivoting free motion handle design

2 x D-Handles and carabiners included

1 x Lat pulldown bar included

1 x Tricep Rope included

1 x Leg Support Pad included

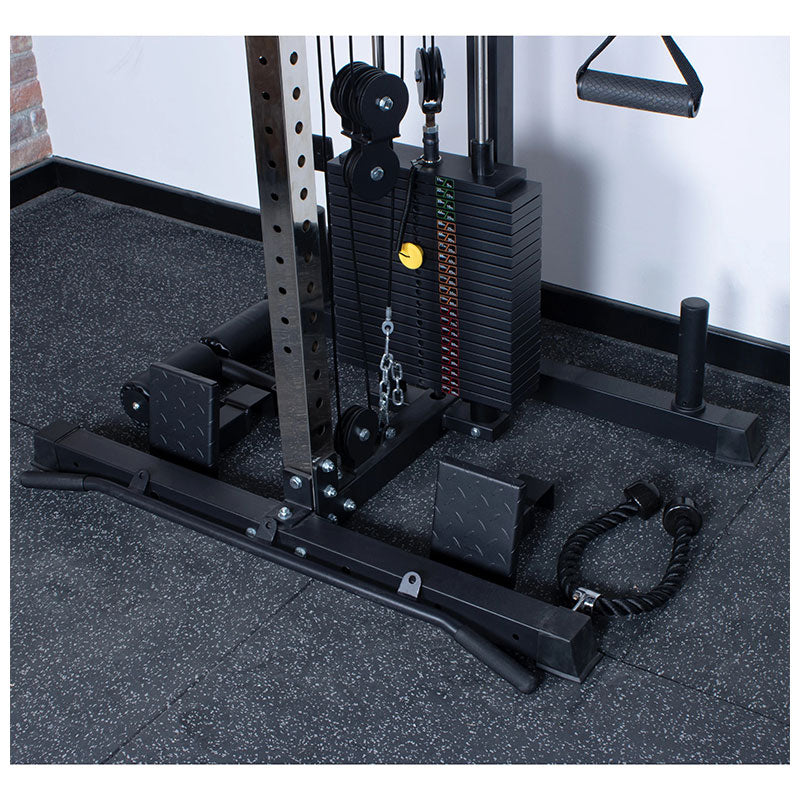

Removable low row footplates included

2:1 and 1:1 pulling ratios

Olympic Weight Plate Storage Poles at the back for storage and counterbalancing

Powder coated steel frame with chrome steel front upright

Specification:

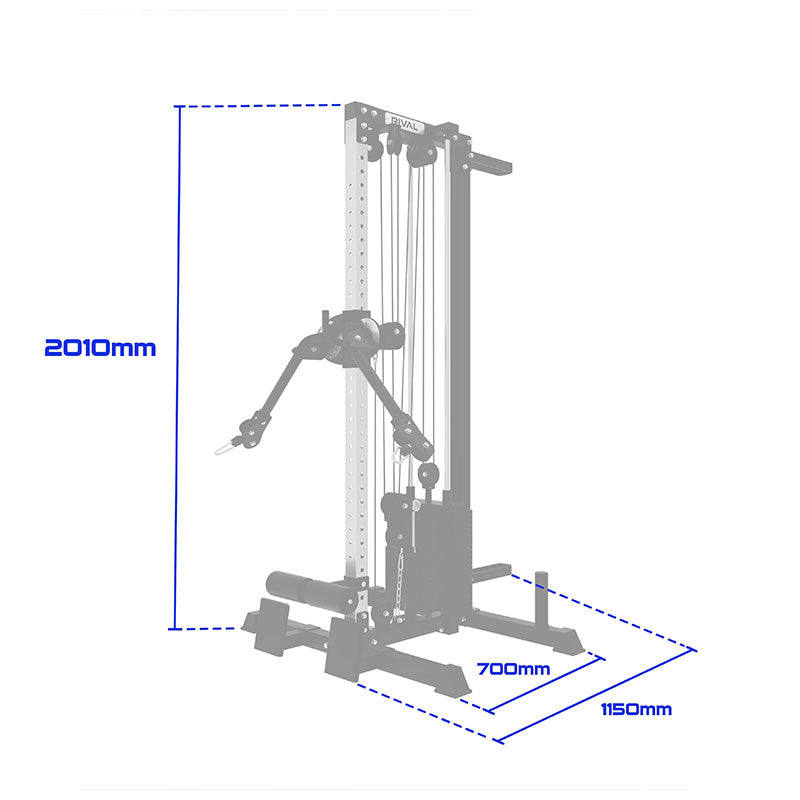

Total Machine Height - 2010mm

Maximum Usable Height (arms extended up vertically) - 2205mm

Total Depth (from the low row footplates/leg support pad to the wall mounting brackets) - 1150mm (980mm without footplates or leg support added)

Depth of Base (front to back) - 700mm

We recommend leaving a 180mm gap from your wall if you are not wall mounting, so you can use the weight plate storage poles to counter balance

Width of Base (widest point) - 1090mm

Maximum Usable Width (arms extended horizontally) - 1320mm

Maximum Load Capacity - 150KG
